Product Overview

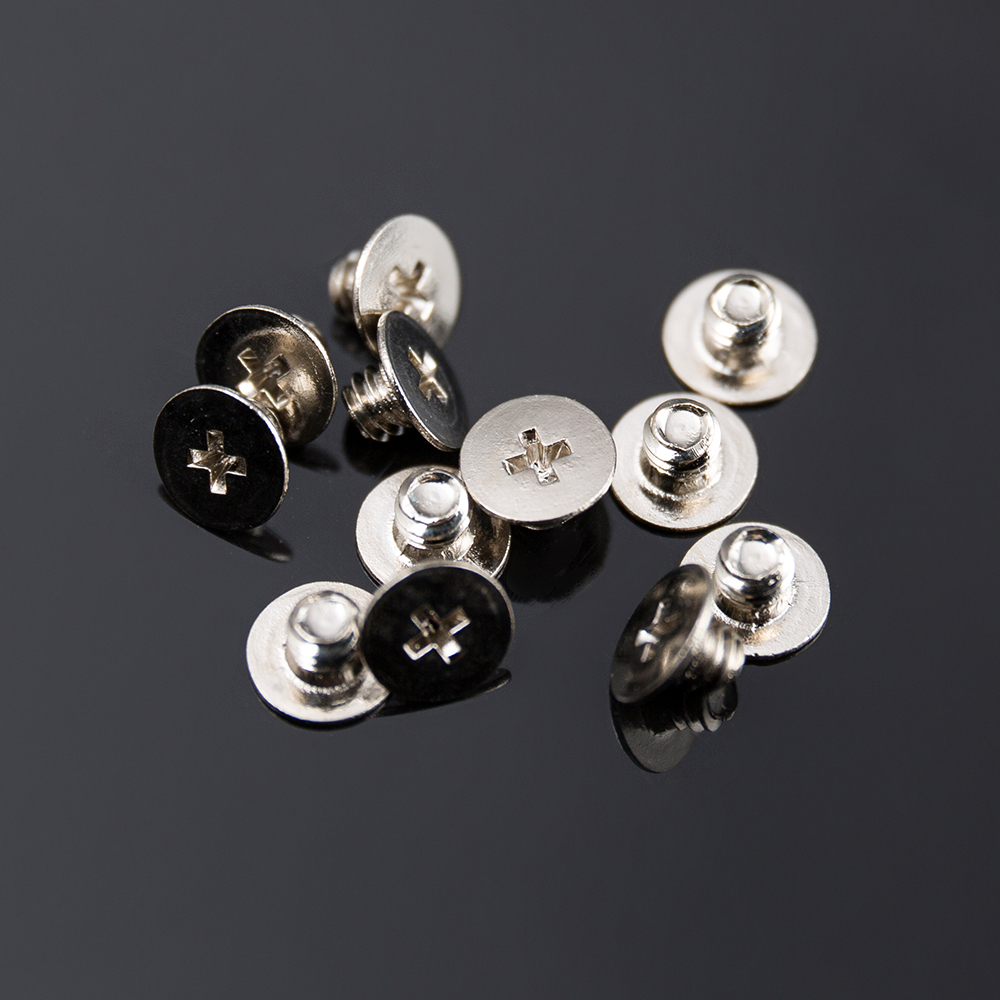

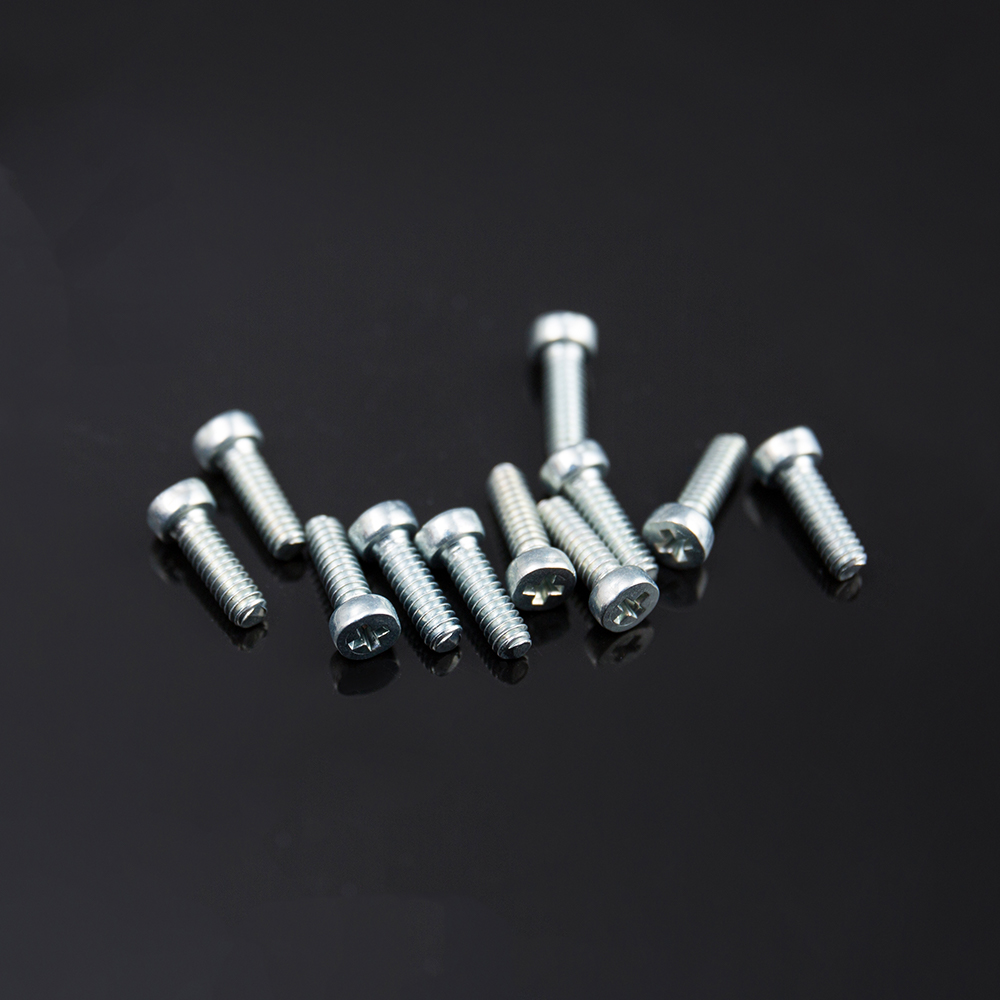

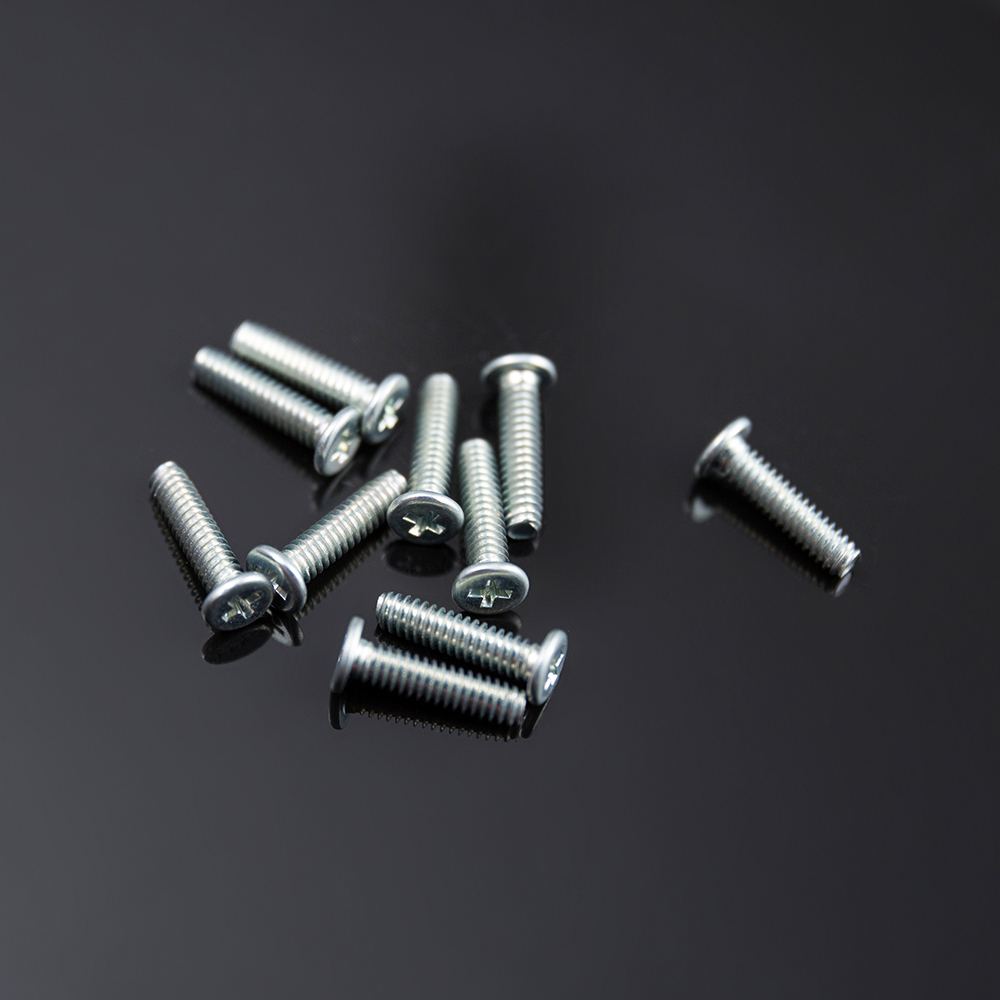

The Electronic Screw is a precision fastener designed for use in delicate electronic assemblies, featuring small sizes, fine threads, and non-corrosive materials. Its low-profile design and consistent performance make it ideal for securing components in compact electronic devices.
Key Features
Precision-manufactured small sizes and fine threads for electronic applications.
Non-corrosive materials (stainless steel, nickel-plated steel) for long-term reliability.
Low-profile head designs suitable for compact device layouts.
Available in specialized drive styles (Torx, Phillips) for tamper resistance and easy installation.
Designed to avoid damaging delicate electronic components during assembly.
| Grade | Carbon Steel (4.8 / 5.8) / Stainless Steel 304 / 316 |
| Size Range | M1.0-M4 / #0-#6 (custom sizes available) |
| Thread Type | Machine thread / self-tapping thread (fine pitch, forming thread) |
| Standards | DIN 7981 / DIN 7982 / ISO 7049 / ASME B18.6.3 |
| Head Style | Pan head / countersunk head/wafer head / flat head optional |
| Drive Type | Phillips / slotted / torx / six-lobe drive optional |
| Thread Class | Forming thread/machine thread (custom pitch available) |
| Material | Carbon Steel / Stainless Steel 304 / 316 / Brass |
| Surface Finish | Nickel Plated / Zinc Plated / Passivated / Tin Plated |
| Hardness | HV 180-350 (grade-dependent) |
| Operating Temperature | -40°C ~ 120°C (material-dependent) |
| Application | PCB boards, consumer electronics, home appliances, and communication devices |
Applications
Smartphone assembly, computer hardware, consumer electronics, and medical devices.
